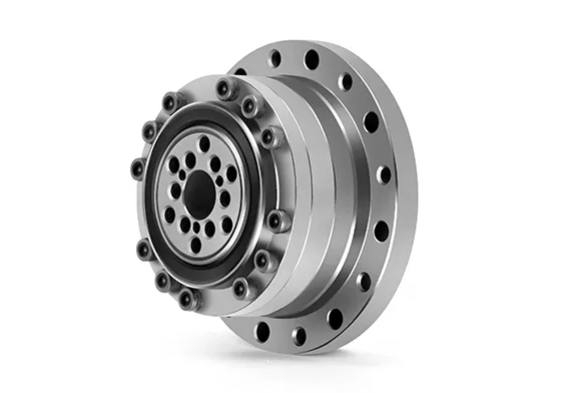

Harmonic Gearbox
Laifual Drive specializes in manufacturing precision harmonic gearbox, offering high flexibility for customizing products to meet specific customer demands.
Key features of Laifual Drive's harmonic gearbox include:
-
Low backlash: ≤20 arc/sec
-
Low temperature operation
-
Low starting torque
-
High speeds
-
High torque capabilities
-
Various reduction ratios: 1:50, 1:80, 1:100, 1:120, and 1:160
-
Compact or miniature designs available as needed
-
Long service life
These gearboxes are widely used in robotics for precise rotational motion, simulating joints. They are also capable of transmitting high torque with great accuracy, making them suitable for aerospace, medical, industrial automation, and military applications.
Harmonic drive consists of three main components:
-
Wave Generator: A ring bearing with a flange connected to the motor. The Wave Generator typically integrates into the Flex-spline on one side and interfaces with the motor via flange and bolts on the other side.
-
Flex-spline: A flexible ring with external teeth, positioned between the Wave Generator and the output ring (Circular Spline). The teeth of the Flex-spline engage at two contact points with the internal teeth of the Circular Spline.
-
Circular Spline: A ring with internal teeth that rotates the output shaft.
This design ensures precise and efficient transmission of motion, critical for demanding applications across various industries.
Laifual Drive's harmonic gearbox series offers a variety of options tailored to different application needs:
FSS Series - Click for additional technical information
-
Torques up to 1,530 Nm
-
Reduction ratios of 1:50, 1:80, 1:100, 1:120, and 1:160
-
Low backlash: ≤20 arc/sec
-
Easy assembly and operation, high rigidity, capable of transmitting large loads
-
Reliable, with a lifespan of up to 15,000 hours under load
FSD Series - Click for additional technical information
-
Compact or miniature design
-
Torques up to 1,530 Nm
-
Reduction ratios of 1:50, 1:80, 1:100
-
Low backlash: ≤20 arc sec
LFS Series - Click for additional technical information
-
Torques up to 54 Nm
-
Compact design with high performance
-
Reduction ratios of 1:50, 1:80, 1:100
-
Low backlash: ≤20 arc sec
-
Offered with built-in motor and customizable control options
-
Torques up to 1,530 Nm
-
Reduction ratios of 1:50, 1:80, 1:100, 1:120, and 1:160
-
Large shaft diameter options
-
Many standard interface options for motor and output shaft
-
Compact design with high performance similar to LSS series
-
Flexible customization available for motor or output shaft interface
FHD Series - Click for additional technical information
-
Torques up to 430 Nm
-
Reduction ratios of 1:50, 1:80, 1:100
-
Flange connection
-
Low backlash: ≤20 arc sec
-
Thin profile design, options to fix either the Circular Spline or Flex-spline component
FHG Series - Click for additional technical information
-
Handles torques up to 1,530 Nm
-
Reduction ratios of 1:50, 1:80, 1:100, 1:120, and 1:160
-
Hollow shaft option and compact harmonic gear design
-
Low backlash: ≤20 arc sec
-
Ideal for high torque applications, available as a hollow shaft harmonic gearbox.
Each series offers unique benefits suited to diverse industrial applications, ensuring robust performance and reliability in demanding environments.
