Laifual Drive
High-Precision Rotary Actuators
Laifual Drive specializes in the production of high-precision rotary actuators and offers customization options upon request.

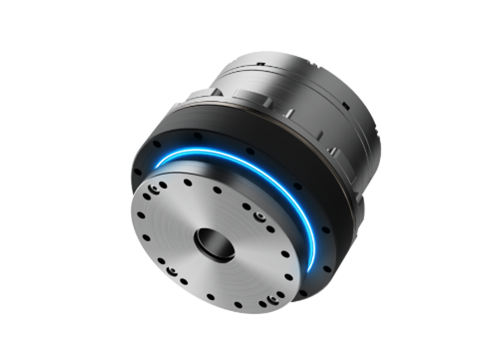

Laifual Drive Harmonic Actuator Features:
- Low backlash – Backlash: ≤20 arc/sec (zero backlash)
- Low operating temperature – down to -55℃
- Low starting torque – starting from 1.5Nm
- Absolute encoder – accuracy of ±20 arc sec, repeatability of ±60 arc sec
- High speeds – up to 8,500 rpm
- High torque – up to 1,530 Nm
- Standard reduction ratios: 1:50, 1:80, 1:100, 1:120, and 1:160 (custom ratios available)
- Long lifespan – up to 20,000 operating hours under load
- Communication protocols: EtherCAT, CANopen, BISS-C, and TAMAGAWA
Harmonic actuators are widely used in robotics for precise rotational motion that mimics joint movements. Additionally, harmonic rotary actuators offer high torque transmission with extreme precision, making them ideal for industries such as aerospace, medical technology, industrial automation, and defense.
A harmonic actuator consists of a harmonic drive, motor, absolute rotary encoder, and an electro-magnetic or electro-mechanical brake.
An integrated torque sensor can be added as an option.
How to Assemble and Connect the Actuator: Watch the tutorial
Harmonic Actuator Series:
LIS Series – Low Voltage (48V DC) Rotary Actuator [More Information]
- Hollow cylindrical actuator for cable routing
- Hollow shaft with flange connection
- Electro-magnetic brake or permanent brake
- Available in 6 sizes (14, 17, 20, 25, 32, 40)
- Weight starting from 1 kg
MIS Series – High Voltage (AC 220V) Rotary Actuator [More Information]
- Hollow cylindrical actuator for cable routing
- Hollow shaft with flange connection
- Electro-magnetic brake or permanent brake
- Available in 6 sizes (14, 17, 20, 25, 32, 40)
MIB Series – High Voltage (AC 220V) Rotary Actuator [More Information]
- Hollow cylindrical actuator for cable routing
- Compact and lightweight (lighter than the MIS series)
- IP65 rated for protection against dust and water
- Reduction ratios: 1:50, 1:80, 1:100, 1:120
- Electro-magnetic power brake
- Available in 6 sizes (14, 17, 20, 25, 32, 40)
LTS Series – Side-Mounted (T-Joint) Low Voltage (48V DC) Rotary Actuator [More Information]
- T-joint mounting
- Compact and lightweight (lighter than the MIS series)
- IP65 rated for protection against dust and water
- Electro-magnetic power brake
- Available in 6 sizes (14, 17, 20, 25, 32, 40)
